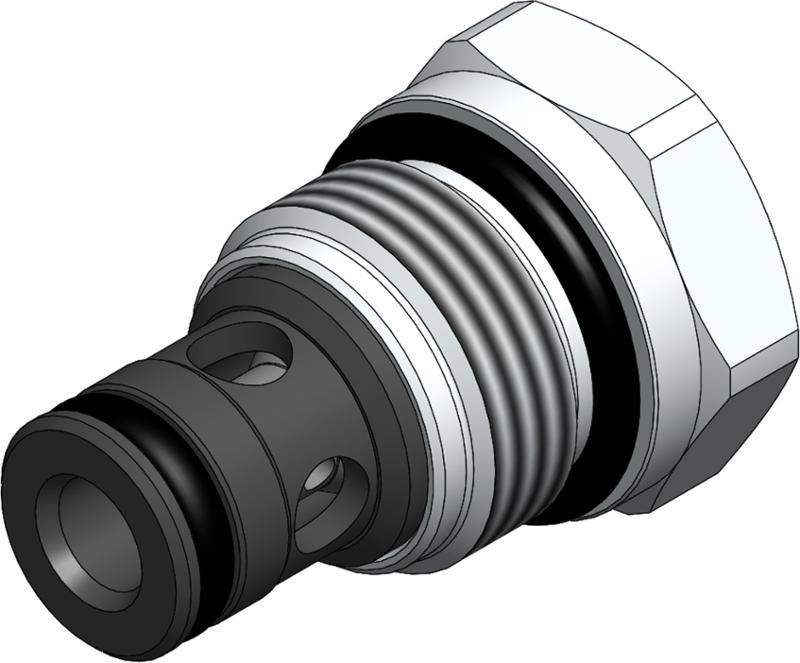

VIS Hydraulics CVC0.S08
A screw-in, cartridge style, direct acting, poppet type check valve. Main use is as a blocking or load-holding device. The CVC0.S08 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).
Product Attributes
- WeightKg
- 0.06
- Installation torqueNm
- 40 - 45
- Filtration
- 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
- No restrictions
- Oil Testing Conditions
- ISO VG 46 cSt
- Fluid
- Mineral - based or synthetics with lubricating properties
- WeightKg
Pressure Attributes
- Max PressureBar
- 420.0
- Max PressureBar
Flow Attributes
- Max Flowl/min
- 50.0
- ViscositiescSt
- 7.4 - 420
- Internal Leakage @ 10 barcc/minute
- 0.1
- Internal Leakage @ 420 barcc/minute
- 0.1
- Max Flowl/min
Dimensions
- Size
- S08
- Size
| SKU | Spring Model Code | Cracking Pressure | Size | Price | Add to shopping cart | Favorites | |
|---|---|---|---|---|---|---|---|
| CVC0.S08.0B.000 | B | 3.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0G.000 | G | 8.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0I.000 | I | 7.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0M.000 | M | 2.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0N.000 | N | 1.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0P.000 | P | 5.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0R.000 | R | 10.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0S.000 | S | 2.5 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0V.000 | V | 9.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0W.000 | W | 15.0 | S08 | on request | Delivery time: 8-10 weeks | ||
| CVC0.S08.0Y.000 | Y | 0.5 | S08 | on request | Delivery time: 8-10 weeks |
