VIS Hydraulics CVH0.S08

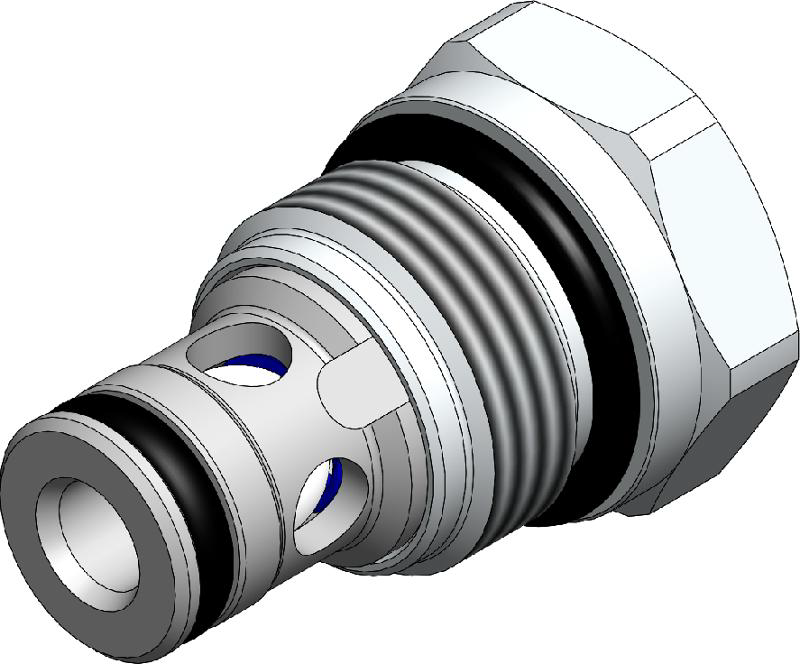

A screw-in, cartridge style, direct acting, ball type check valve. Main use is as a blocking or load-holding device. The CVH0.S08allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure isapplied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).

Product Attributes
- WeightKg
  - 0.55
- Installation torqueNm
  - 40 - 45
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 420.0
Flow Attributes
- Max Flowl/min
  - 50.0
- ViscositiescSt
  - 7.4 - 420
- Internal Leakage @ 10 barcc/minute
  - 0.1
- Internal Leakage @ 420 barcc/minute
  - 0.1
Dimensions
- Size
  - S08

SKU	Spring Model Code	Cracking Pressure	Size	Price	Add to shopping cart	Favorites

CVH0.S08.0P.000	P	4.5	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVH0.S08.0U.000	U	6.0	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVH0.S08.0Y.000	Y	0.5	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVH0.S08.0M.000	M	2.0	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVH0.S08.0N.000	N	1.5	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
