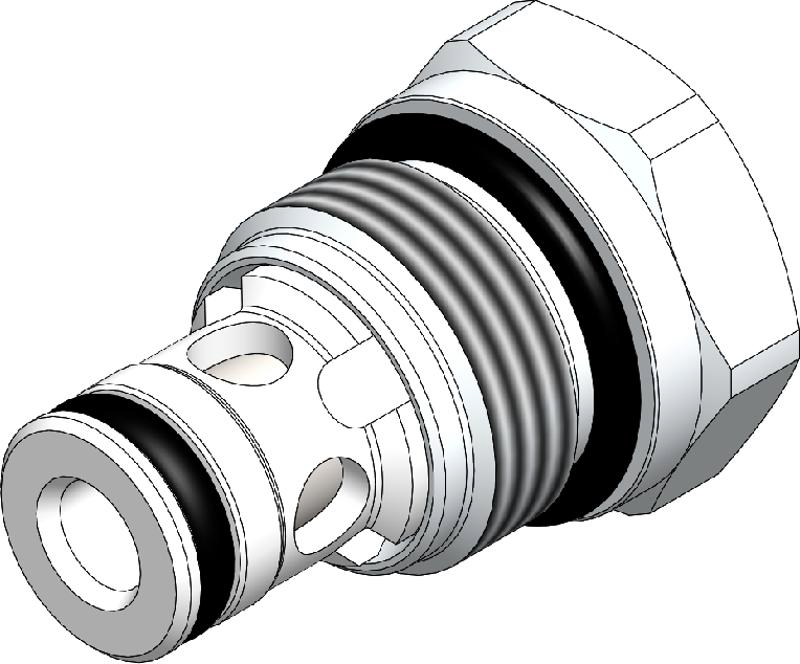

VIS Hydraulics CVHG.S08

A screw-in, cartridge style, direct acting, ball type check valve. Main use is as a blocking or load-holding device. The CVHG.S08allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure isapplied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).

Product Attributes
- WeightKg
  - 0.06
- Installation torqueNm
  - 40 - 45
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 420.0
Flow Attributes
- Max Flowl/min
  - 50.0
- ViscositiescSt
  - 7.4 - 420
- Internal Leakage @ 10 barcc/minute
  - 0.1
- Internal Leakage @ 420 barcc/minute
  - 0.1
Dimensions
- Size
  - S08

SKU	Spring Model Code	Cracking Pressure	Size	Price	Add to shopping cart	Favorites

CVHG.S08.0F.000	F	7.0	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVHG.S08.0I.000	I	0.5	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVHG.S08.0R.000	R	10.3	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVHG.S08.0T.000	T	13.0	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
