VIS Hydraulics CVP0.M24

VIS Hydraulics CVP0.M24
  • VIS Hydraulics CVP0.M24
  • VIS Hydraulics CVP0.M24
  • VIS Hydraulics CVP0.M24
  • VIS Hydraulics CVP0.M24
  • VIS Hydraulics CVP0.M24

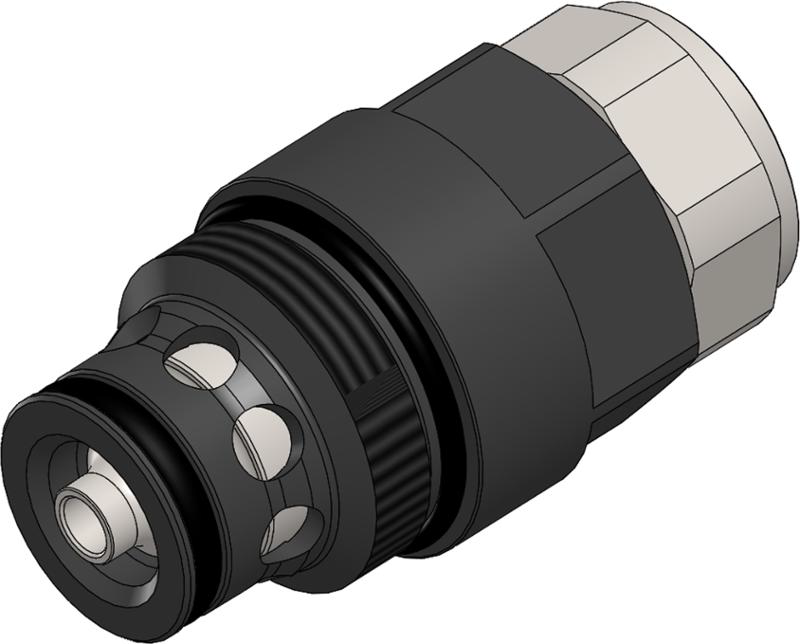

A screw-in, cartridge style, direct acting, poppet type check valve. Main use is as a blocking or load-holding device. The CVP0.M24allows flow passage from port 2 to 1: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure isapplied at port 2 to open to 1. The flow is blocked in the opposite direction (1 to 2).
  • Product Attributes

    • WeightKg
      • 0.15
    • Installation torqueNm
      • 70 - 80
    • Filtration
      • 20/18/15 iso 4406 (maximum filtration admitted)
    • Orientation
      • No restrictions
    • Oil Testing Conditions
      • ISO VG 46 cSt
    • Fluid
      • Mineral - based or synthetics with lubricating properties
  • Pressure Attributes

    • Max PressureBar
      • 420.0
  • Flow Attributes

    • Max Flowl/min
      • 100.0
    • ViscositiescSt
      • 7.4 - 420
    • Internal Leakage @ 10 barcc/minute
      • 0.1
    • Internal Leakage @ 420 barcc/minute
      • 0.1
  • Dimensions

    • Size
      • M24
SKU Spring Model Code Price Add to shopping cart Favorites
CVP0.M24.0N.000N
Delivery time: 8-10 weeks
