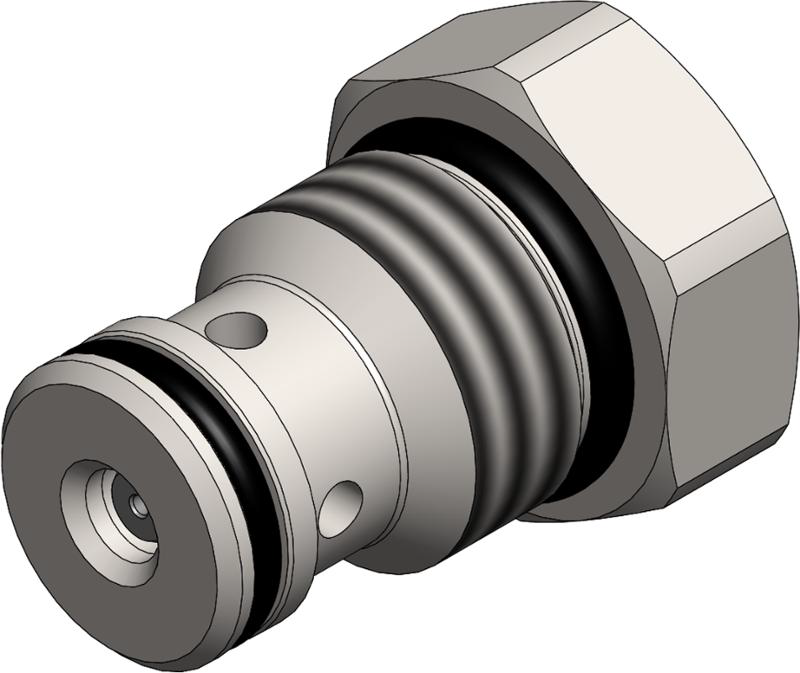

A screw-in, cartridge style, direct acting, poppet type check valve. The CVS4.S10 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).

  • Product Attributes

    • WeightKg
      • 0.11
    • Installation torqueNm
      • 80 - 85
    • Filtration
      • 20/18/15 iso 4406 (maximum filtration admitted)
    • Orientation
      • No restrictions
    • Oil Testing Conditions
      • ISO VG 46 cSt
    • Temperature RangeC
      • -30 - 110
    • Fluid
      • Mineral - based or synthetics with lubricating properties

  • Pressure Attributes

    • Max PressureBar
      • 350.0

  • Flow Attributes

    • Max Flowl/min
      • 30.0
    • ViscositiescSt
      • 7.4 - 420
    • Internal Leakage @ 10 barcc/minute
      • 0.1
    • Internal Leakage @ 350 barcc/minute
      • 0.1

  • Dimensions

    • Size
      • S10
