VIS Hydraulics SVI0.S10

VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10
  • VIS Hydraulics SVI0.S10

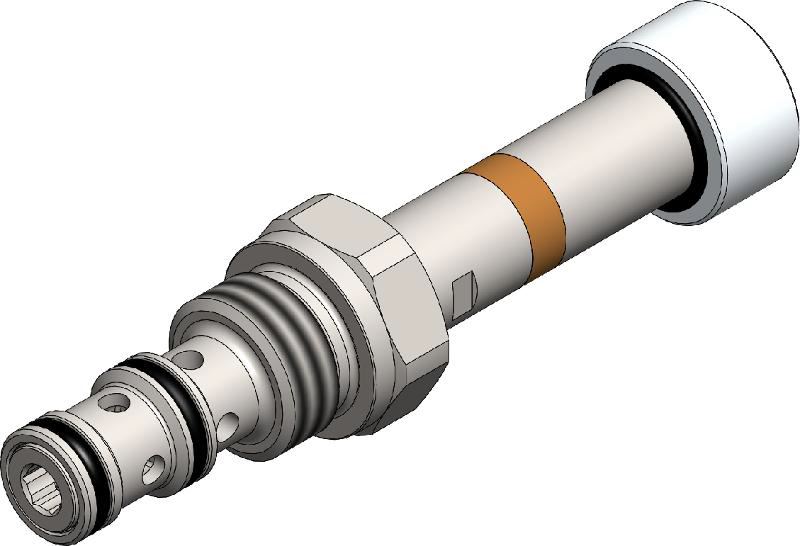

A solenoid valve operated, 3 way 2 positions, seated type, direct acting, bi-directional blocking, screw-in hydraulic directional cartridge valve.In the de-energized mode, the SVI0.S10 allows flow bi-directionally between ports 1 and 2, while blocking flow at 3. In the energized mode,bi-directional flow is allowed between ports 3 and 2, while flow is blocked at 1 with extremely low leakage. Even if port 1 and 3 may be fullypressurized they are not intended to be used as the inlet. The rigid design using a 1-piece body contributes to minimize the effect ofeccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.
  • Product Attributes

    • WeightKg
      • 0.23
    • Installation torqueNm
      • 35 - 40
    • Filtration
      • 20/18/15 iso 4406 (maximum filtration admitted)
    • Orientation
      • No restrictions
    • Oil Testing Conditions
      • ISO VG 46 cSt
    • Fluid
      • Mineral - based or synthetics with lubricating properties
  • Pressure Attributes

    • Max PressureBar
      • 250.0
  • Flow Attributes

    • Max Flowl/min
      • 20.0
    • ViscositiescSt
      • 7.4 - 420
SKU Override Type Price Add to shopping cart Favorites
SVI0.S10.00.000No override
Delivery time: 8-10 weeks
SVI0.S10.03.000Push pin
Delivery time: 8-10 weeks
SVI0.S10.04.000Push knob
Delivery time: 8-10 weeks
SVI0.S10.08.000Screw
Delivery time: 8-10 weeks
