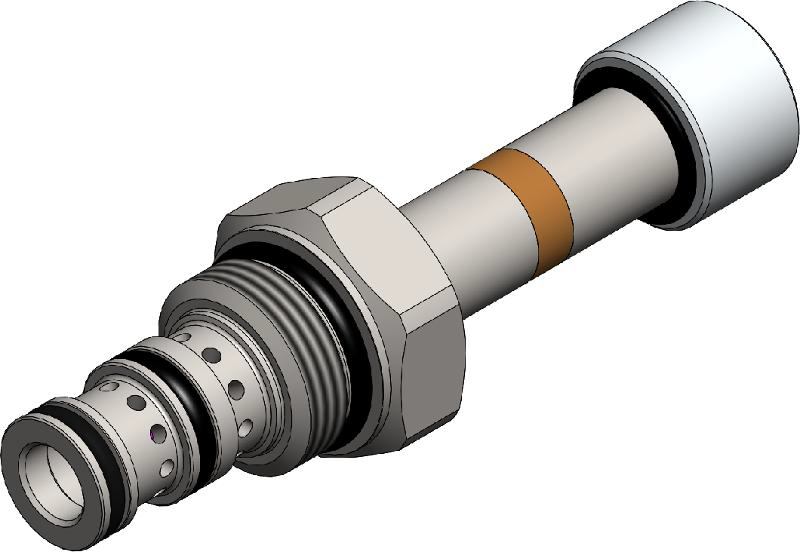

VIS Hydraulics SVP4.M22

A solenoid valve operated, 3 way 2 positions, spool type, direct acting, screw-in hydraulic directional cartridge valve. In the deenergizedmode, the SVP4.M22 allows flow between ports 3 and 1, while blocking flow at 2. In the energized mode, flow is allowedbetween ports 2 and 1, while flow is blocked at 3. The rigid design using a 1-piece body contributes to minimize the effect ofeccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path.

Product Attributes
- WeightKg
  - 0.16
- Installation torqueNm
  - 35 - 40
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 250.0
Flow Attributes
- Max Flowl/min
  - 20.0
- ViscositiescSt
  - 7.4 - 420

SKU	Override Type	Price	Add to shopping cart	Favorites

SVP4.M22.00.300	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVP4.M22.03.300	Push pin	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVP4.M22.04.300	Push knob	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVP4.M22.08.300	Screw	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
