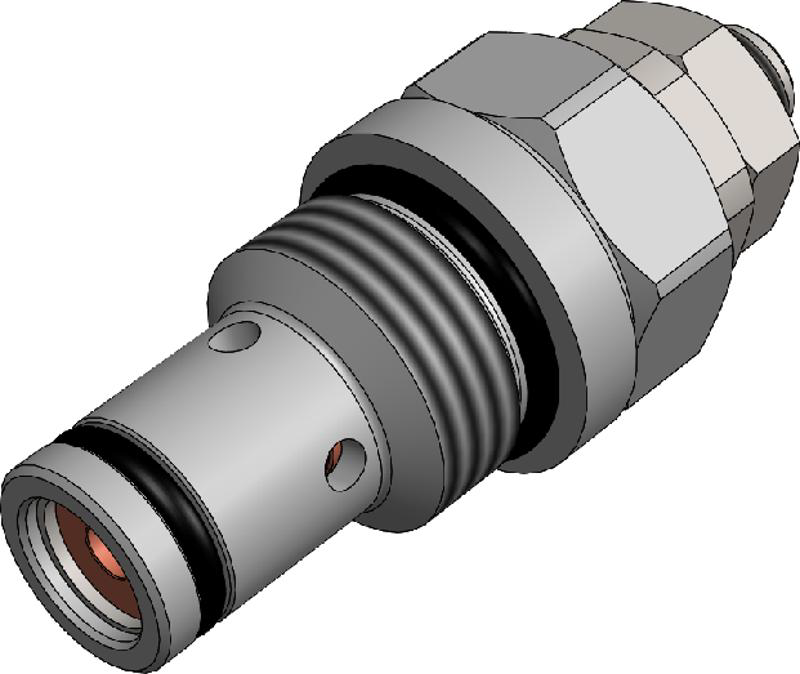

VIS Hydraulics FCA0.S10

A direct acting, screw-in insert type, 2-way pressure compensated flow control valve. The flow rate of this valve in the 1 to 2 flowpath is largely independent of the system pressure. The valve can be adjusted for variable flow output. Free flow in the 2 to 1 pathis allowed and not pressure compensated.

Product Attributes
- WeightKg
  - 0.15
- Installation torqueNm
  - 40 - 45
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 350.0
- Tightening Torque
  - 15 - 45
Flow Attributes
- Max Flowl/min
  - 16.0
- ViscositiescSt
  - 7.4 - 420

SKU	Spring Model Code	Flow adjustment	Options	Flow adjustment	Price	Add to shopping cart	Favorites

FCA0.S10.00.000	0.0	Hex allen head	Standard configuration	Hex allen head	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
FCA0.S10.00.100	0.0	Hex allen head	Fine regulation	Hex allen head	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
FCA0.S10.0V.000	V	Top plastic knob	Standard configuration	Top plastic knob	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
FCA0.S10.0V.100	V	Top plastic knob	Fine regulation	Top plastic knob	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
FCA0.S10.0W.000	W	Top plastic knob + plastic counter knob	Standard configuration	Top plastic knob + plastic counter knob	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
FCA0.S10.0W.100	W	Top plastic knob + plastic counter knob	Fine regulation	Top plastic knob + plastic counter knob	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
