VIS Hydraulics FRS0.G38

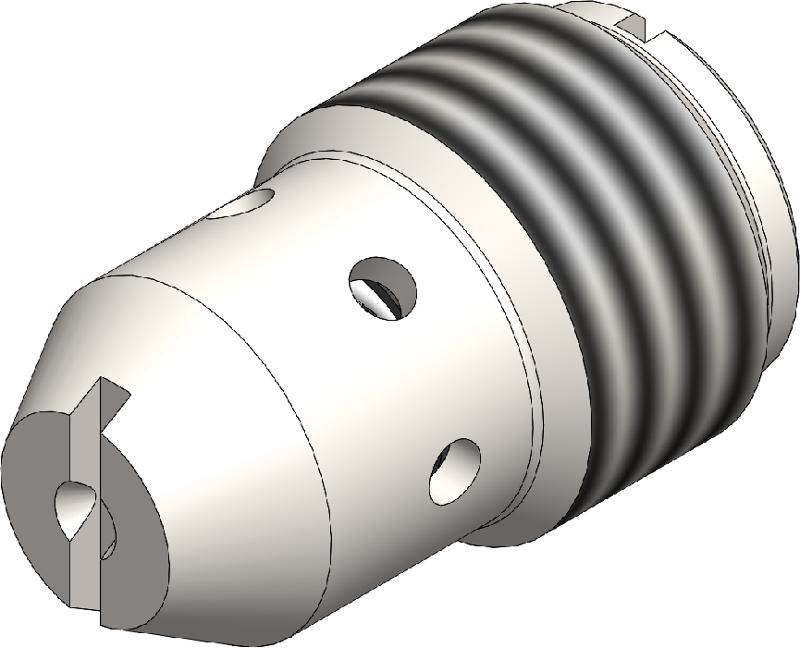

A direct acting, screw-in insert type, 2-way pressure compensated flow control valve. The flow rate of this valve in the 1 to 2 flowpath is largely independent of the system pressure and is determined by the dimension of a calibrated orifice. The valve cannot beadjusted for variable flow output. Free flow in the 2 to 1 path is allowed and not pressure compensated.
Product Attributes
- WeightKg
- 0.03
- Installation torqueNm
- 5 - 8
- Filtration
- 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
- No restrictions
- Oil Testing Conditions
- ISO VG 46 cSt
- Fluid
- Mineral - based or synthetics with lubricating properties
- WeightKg
Pressure Attributes
- Max PressureBar
- 250.0
- Max PressureBar
Flow Attributes
- Max Flowl/min
- 28.0
- ViscositiescSt
- 7.4 - 420
- Max Flowl/min
| SKU | Flow Setting Range | Flow Setting Range | Price | Add to shopping cart | Favorites | |
|---|---|---|---|---|---|---|
| FRS0.G38.0N.030 | 3.0 | 3.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.160 | 16.0 | 16.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.180 | 18.0 | 18.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.200 | 20.0 | 20.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.230 | 23.0 | 23.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.280 | 28.0 | 28.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.040 | 4.0 | 4.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.050 | 5.0 | 5.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.060 | 6.0 | 6.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.070 | 7.0 | 7.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.080 | 8.0 | 8.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.090 | 9.0 | 9.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.100 | 10.0 | 10.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.110 | 11.0 | 11.0 | on request | Delivery time: 8-10 weeks | ||
| FRS0.G38.0N.150 | 14.0 | 14.0 | on request | Delivery time: 8-10 weeks |
