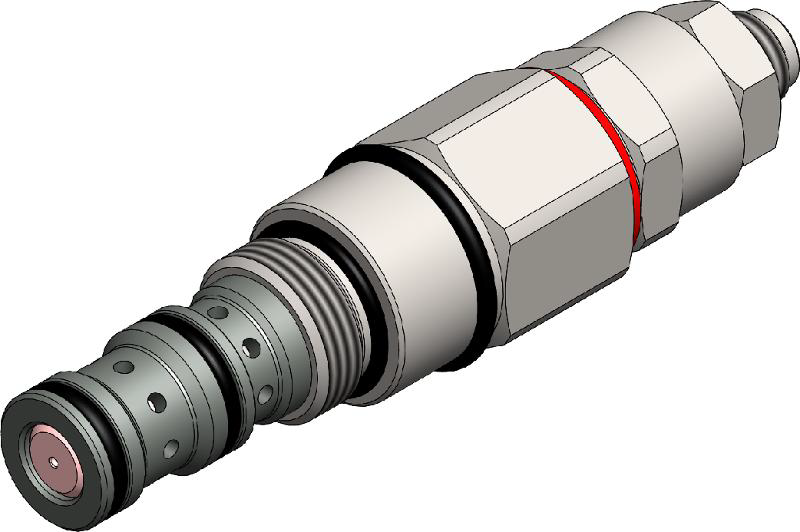

The SQD0.M22 is a screw in, cartridge style, direct acting, spool type hydraulic sequence valve with external pilot. Spring chamberis constantly air vented. The valve is designed to open flow connection between two ports that were previously blocked. In the idlecondition, the SQD0.M22 blocks flow between ports 2 and 3. Once pilot pressure at 1 attains the spring setting the spool shifts andallows flow between ports 2 and 3 in both directions.

  • Product Attributes

    • WeightKg
      • 0.33
    • Installation torqueNm
      • 45 - 50
    • Filtration
      • 20/18/15 iso 4406 (maximum filtration admitted)
    • Orientation
      • No restrictions
    • Oil Testing Conditions
      • ISO VG 46 cSt
    • Fluid
      • Mineral - based or synthetics with lubricating properties

  • Pressure Attributes

    • Max PressureBar
      • 300.0
    • Tightening Torque
      • 13 - 50

  • Flow Attributes

    • Max Flowl/min
      • 40.0
    • ViscositiescSt
      • 7.4 - 420
