VIS Hydraulics SVB0.S08

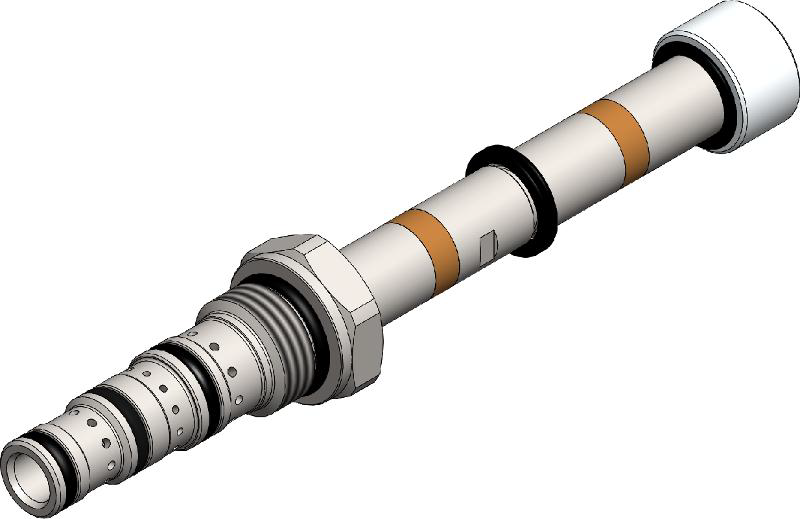

A solenoid valve operated, 4 way 3 positions, spool type, direct acting, screw-in hydraulic directional cartridge valve. In the deenergizedmode the SVB0.S08 blocks flow to all ports. When coil S1 (lower coil) is energized flow is allowed from 3 to 4 and from 2to 1. When coil S2 (upper coil) is energized flow is allowed from 3 to 2 and from 4 to 1. The rigid design using a 1-piece bodycontributes to minimize the effect of eccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flowpaths.

Product Attributes
- WeightKg
  - 0.18
- Installation torqueNm
  - 40 - 45
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 250.0
Flow Attributes
- Max Flowl/min
  - 10.0
- ViscositiescSt
  - 7.4 - 420

SKU	Override Type	Price	Add to shopping cart	Favorites

SVB0.S08.00.A00	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVB0.S08.00.B00	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVB0.S08.00.C00	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVB0.S08.00.D00	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
SVB0.S08.00.E00	No override	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
