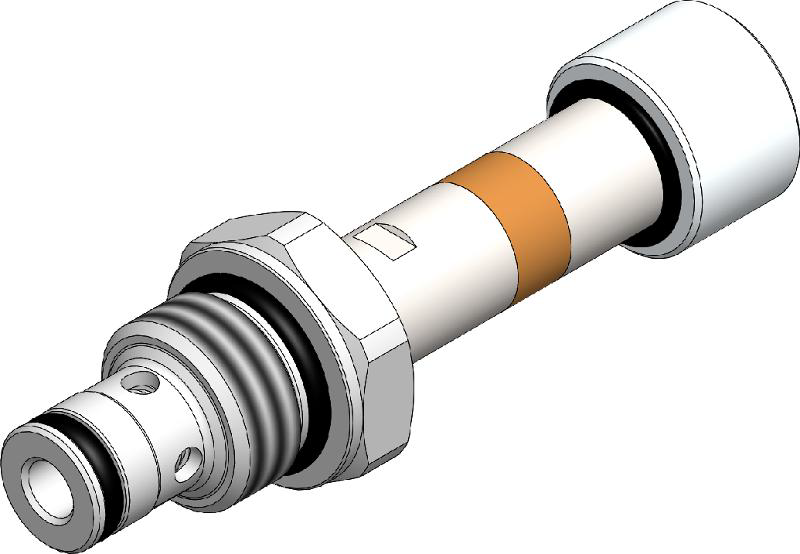

VIS Hydraulics SVE0.S08
A solenoid valve operated, 2-way 2-positions, normally open, direct acting poppet type, bi-directional blocking, screw-in cartridgevalve. Special design for low leakage in load holding applications. When the coil is de-energized, the SVE0.S08 allows flow in bothdirections. Once the coil is energized, the valve closes blocking flow from 1 to 2 and from 2 to 1. The rigid design using a 1-piecebody contributes to minimize the effect of eccentricities in cavity and provides great reliability. Low pressure drop thanks tooptimized flow path.
Product Attributes
- WeightKg
- 0.13
- Installation torqueNm
- 40 - 45
- Filtration
- 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
- No restrictions
- Oil Testing Conditions
- ISO VG 46 cSt
- Fluid
- Mineral - based or synthetics with lubricating properties
- WeightKg
Pressure Attributes
- Max PressureBar
- 250.0
- Max PressureBar
Flow Attributes
- Max Flowl/min
- 15.0
- ViscositiescSt
- 7.4 - 420
- Max Flowl/min
| SKU | Filter Type | Option Code | Option Code | Override Type | Price | Add to shopping cart | Favorites | |
|---|---|---|---|---|---|---|---|---|
| SVE0.S08.04.N00 | No filter | S08 | 3/4-16 UNF with Ø12,7 nose size | Push knob | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.08.F00 | Standard filter (mesh size 280 μm) | S08 | 3/4-16 UNF with Ø12,7 nose size | Screw | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.08.N00 | No filter | S08 | 3/4-16 UNF with Ø12,7 nose size | Screw | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.00.F00 | Standard filter (mesh size 280 μm) | S09 | 3/4-16 UNF with Ø15,86 nose size | No override | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.00.N00 | No filter | S09 | 3/4-16 UNF with Ø15,86 nose size | No override | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.02.F00 | Standard filter (mesh size 280 μm) | S09 | 3/4-16 UNF with Ø15,86 nose size | Push and Twist | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.02.N00 | No filter | S09 | 3/4-16 UNF with Ø15,86 nose size | Push and Twist | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.03.F00 | Standard filter (mesh size 280 μm) | S09 | 3/4-16 UNF with Ø15,86 nose size | Push pin | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.03.N00 | No filter | S09 | 3/4-16 UNF with Ø15,86 nose size | Push pin | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.04.F00 | Standard filter (mesh size 280 μm) | S09 | 3/4-16 UNF with Ø15,86 nose size | Push knob | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.04.N00 | No filter | S09 | 3/4-16 UNF with Ø15,86 nose size | Push knob | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.08.F00 | Standard filter (mesh size 280 μm) | S09 | 3/4-16 UNF with Ø15,86 nose size | Screw | on request | Delivery time: 8-10 weeks | ||
| SVE0.S09.08.N00 | No filter | S09 | 3/4-16 UNF with Ø15,86 nose size | Screw | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.00.F00 | Standard filter (mesh size 280 μm) | S08 | 3/4-16 UNF with Ø12,7 nose size | No override | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.00.N00 | No filter | S08 | 3/4-16 UNF with Ø12,7 nose size | No override | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.02.F00 | Standard filter (mesh size 280 μm) | S08 | 3/4-16 UNF with Ø12,7 nose size | Push and Twist | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.02.N00 | No filter | S08 | 3/4-16 UNF with Ø12,7 nose size | Push and Twist | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.03.F00 | Standard filter (mesh size 280 μm) | S08 | 3/4-16 UNF with Ø12,7 nose size | Push pin | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.03.N00 | No filter | S08 | 3/4-16 UNF with Ø12,7 nose size | Push pin | on request | Delivery time: 8-10 weeks | ||
| SVE0.S08.04.F00 | Standard filter (mesh size 280 μm) | S08 | 3/4-16 UNF with Ø12,7 nose size | Push knob | on request | Delivery time: 8-10 weeks |
