VIS Hydraulics SHV0.G18

Back to previous page
VIS Hydraulics SHV0.G18
  • VIS Hydraulics SHV0.G18
  • VIS Hydraulics SHV0.G18
  • VIS Hydraulics SHV0.G18
  • VIS Hydraulics SHV0.G18
  • VIS Hydraulics SHV0.G18

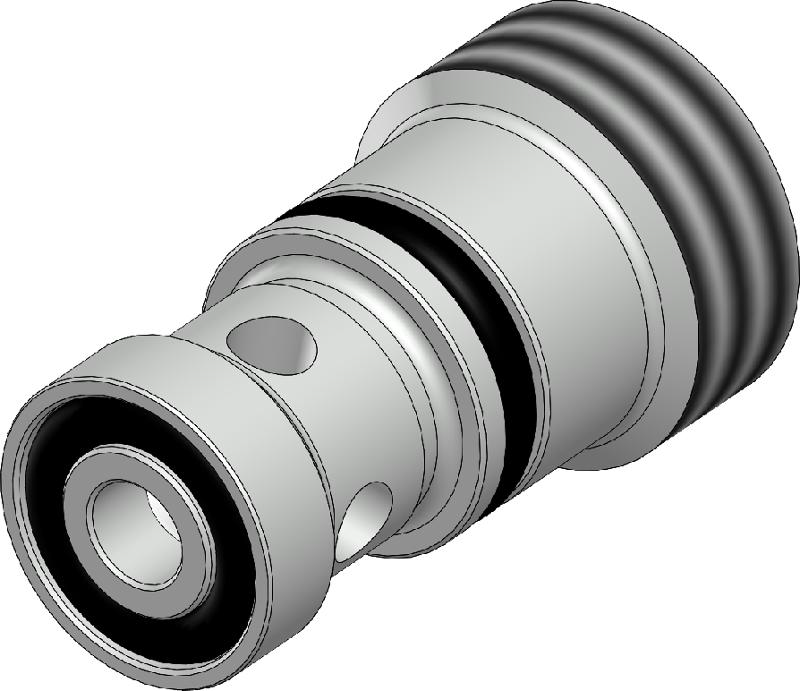

Shut-off valves for hydraulics systems, with two inlets and one outlet. Ball seat construction, automatic switching. The inlet with thehigher pressure (port 1 or 3) is directly connected to tank (port 2), while the second inlet (port 3 or 1) is shut off.

  • Product Attributes

    • WeightKg
      • 0.01
    • Installation torqueNm
      • 7 - 9
    • Filtration
      • 20/18/15 iso 4406 (maximum filtration admitted)
    • Orientation
      • No restrictions
    • Oil Testing Conditions
      • ISO VG 46 cSt
    • Fluid
      • Mineral - based or synthetics with lubricating properties

  • Pressure Attributes

    • Max PressureBar
      • 350.0

  • Flow Attributes

    • Max Flowl/min
      • 10.0
    • ViscositiescSt
      • 7.4 - 420
    • Internal Leakage @ 350 barcc/minute
      • 0.25
