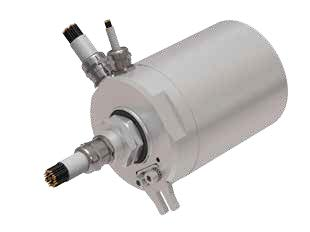

HBS Slip Ring S130 S0541089900

HBS Slip Ring S130 S0541089900
  • HBS Slip Ring S130 S0541089900
  • HBS Slip Ring S130 S0541089900
  • HBS Slip Ring S130 S0541089900
SLIP RING ASSY 1 Earth+7 -16 AMP[wire]
Price 605,40
Total 605,40
Delivery time: Contact us
-+
  • Product Attributes

    • Cable Lengthmt
      • 2.5
    • Wire sectionmm
      • 1.5
    • Mounting Position
      • Vertical / Horizontal
    • IP-Protection
      • IP67
    • Size
      • variable
    • Temperature RangeC
      • -40;60
    • Max. Rings
      • 50.0
    • Suitable for
      • analog-to-digital and auxiliary power
    • Max Operating VoltageVac/Vdc
      • 680.0
    • Test VoltageVac
      • 2000.0
    • Contact resistance Brushes / Rings
      • <20 mhom
    • Number of Rings
      • 1Earth+7
    • Direction of Rotation
      • Clockwise
      • Counter Clockwise
    • Rated CurrentA
      • 16.0
    • Cable(mm²) L=2.5mt
      • 1.5
    • Max RPM
      • 12.0
    • Output Type
      • Multipolar cable12G1.5 pur
    • Max Current MonofilamentA cont. loop
      • 20.0
    • Max Current ElectrografiteA cont. loop
      • 12.0
  • Dimensions

    • Size Under Covermm
      • 30;260
