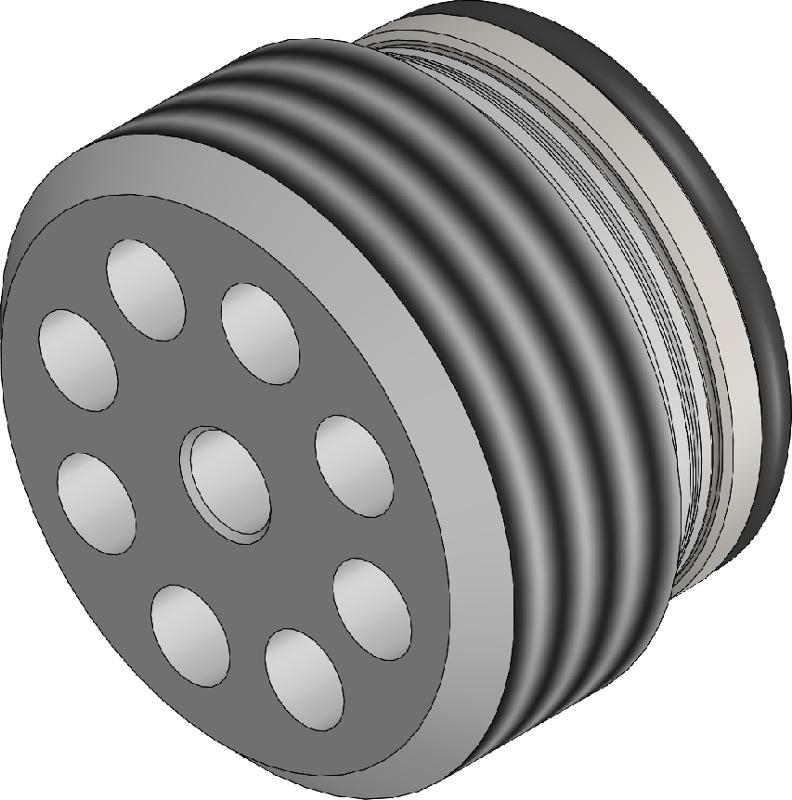

VIS Hydraulics CVD0

A screw-in, direct acting, poppet type in-line check valve. Main use is as a blocking or load-holding device. The CVD0 allowsflow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure isapplied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).

Product Attributes
- Filtration
  - 20/18/15 iso 4406 (maximum filtration admitted)
- Orientation
  - No restrictions
- Oil Testing Conditions
  - ISO VG 46 cSt
- Fluid
  - Mineral - based or synthetics with lubricating properties
Pressure Attributes
- Max PressureBar
  - 350.0
Flow Attributes
- ViscositiescSt
  - 7.4 - 420
- Internal Leakage @ 10 barcc/minute
  - 0.1
- Internal Leakage @ 350 barcc/minute
  - 0.1

SKU	Spring Model Code	Cracking Pressure	Size	Price	Add to shopping cart	Favorites

CVD0.G12.0N.000	N	0.5	G12	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.G14.0N.000	N	0.5	G14	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.G18.0N.000	N	0.5	G18	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.G34.0N.000	N	0.5	G34	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.G38.0N.000	N	0.5	G38	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.S06.0N.000	N	0.5	S06	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.S08.0N.000	N	0.5	S08	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
CVD0.S10.0N.000	N	0.5	S10	Login	Delivery time: 8-10 weeks Request Quotation	Add to favoritesAdded to favorites
